Different Chart Types & Settings in Foodics BI Custom Reports

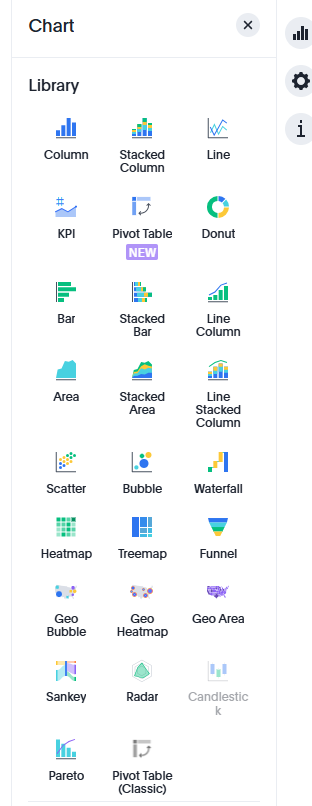

There are 5 different types of charts in Foodics BI:

1. Tables: A table of the content you wish to have a report on where you can filter the order, remove columns that you do not need, and more.

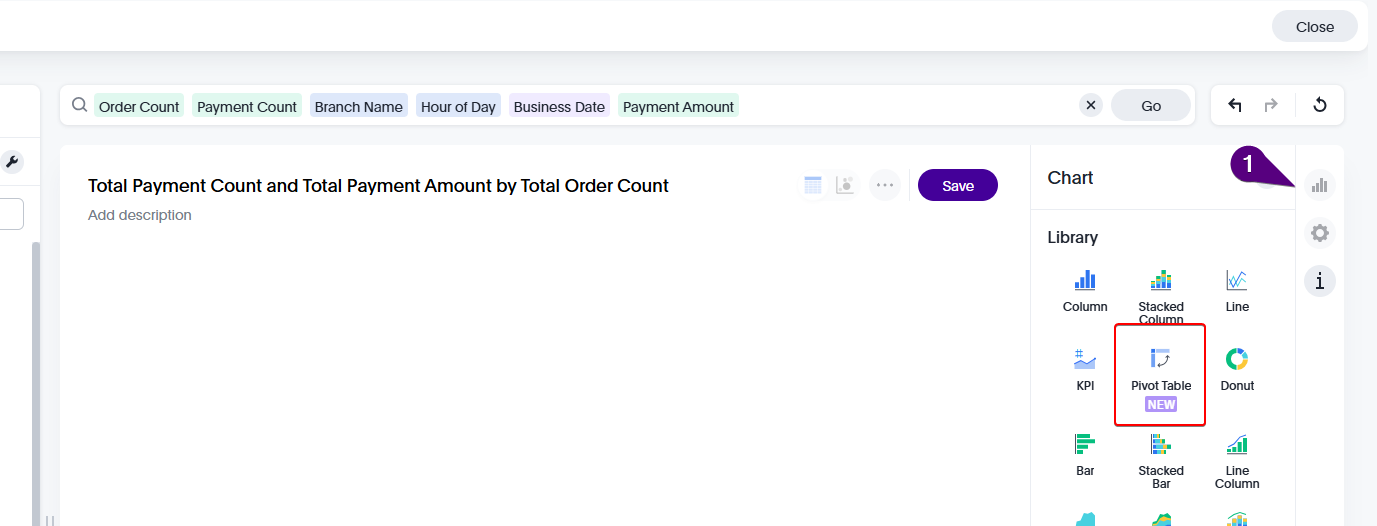

2. Pivot Tables: To get the pivot table, go to an existing report. Normally it would select columns or tables by default, however if you click on visualization on the right corner. You have the ability to change it to a pivote tables

3. Bar & Columns: You can change the columns to be :
   • stacked columns
   • line columns
   • line stacked columns
   • pareto table
   • Bar Table
   • Stacked Bar

4. Line Charts:
   • You have Line Charts
   • Line Columns
   • Line Stacked Columns
5. Pie & Donut Charts
   • You have Donuts
   • Heat maps
   • Geographic heat man
6. Other visualizations:
   • Bubble charts
   • Scatter charts
   • Waterfall
   • Radar
   • Sankey
   • Funnel
   • KPI based

In general in all charts you can sort (ascending, or descending) by clicking on the Axis. You can furthermore, filter the data of the axis to a specific point you want to visualize.

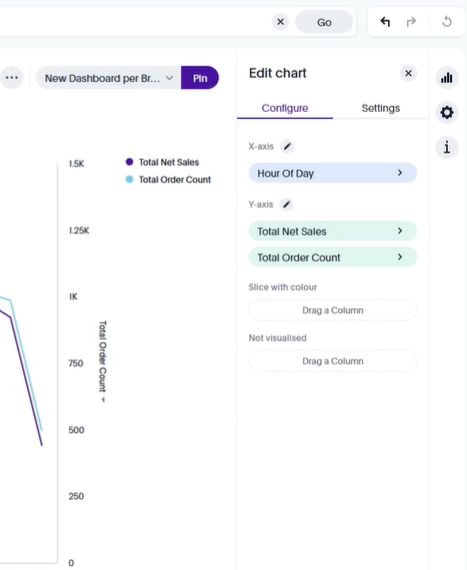

We can also click on cogwheel on the right to reach the chart settings where you can edit what measure/attribute/etc is set on what axis

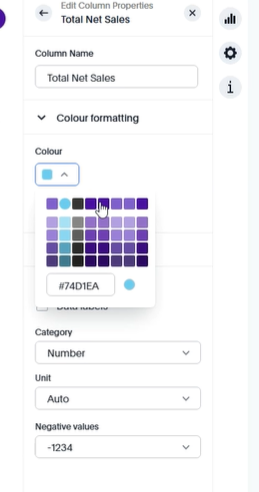

You can further click on settings to be able to change the color formatting of the chart for example, or display data labels, etc.
