Star TSP143IIIU - How to Connect the Printer

The connection type between Star TSP143IIIU and the iPad device is via USB.

To establish the connection refer to the following guidance:

1. Simply connect the USB cable between the cashier app and the printer.

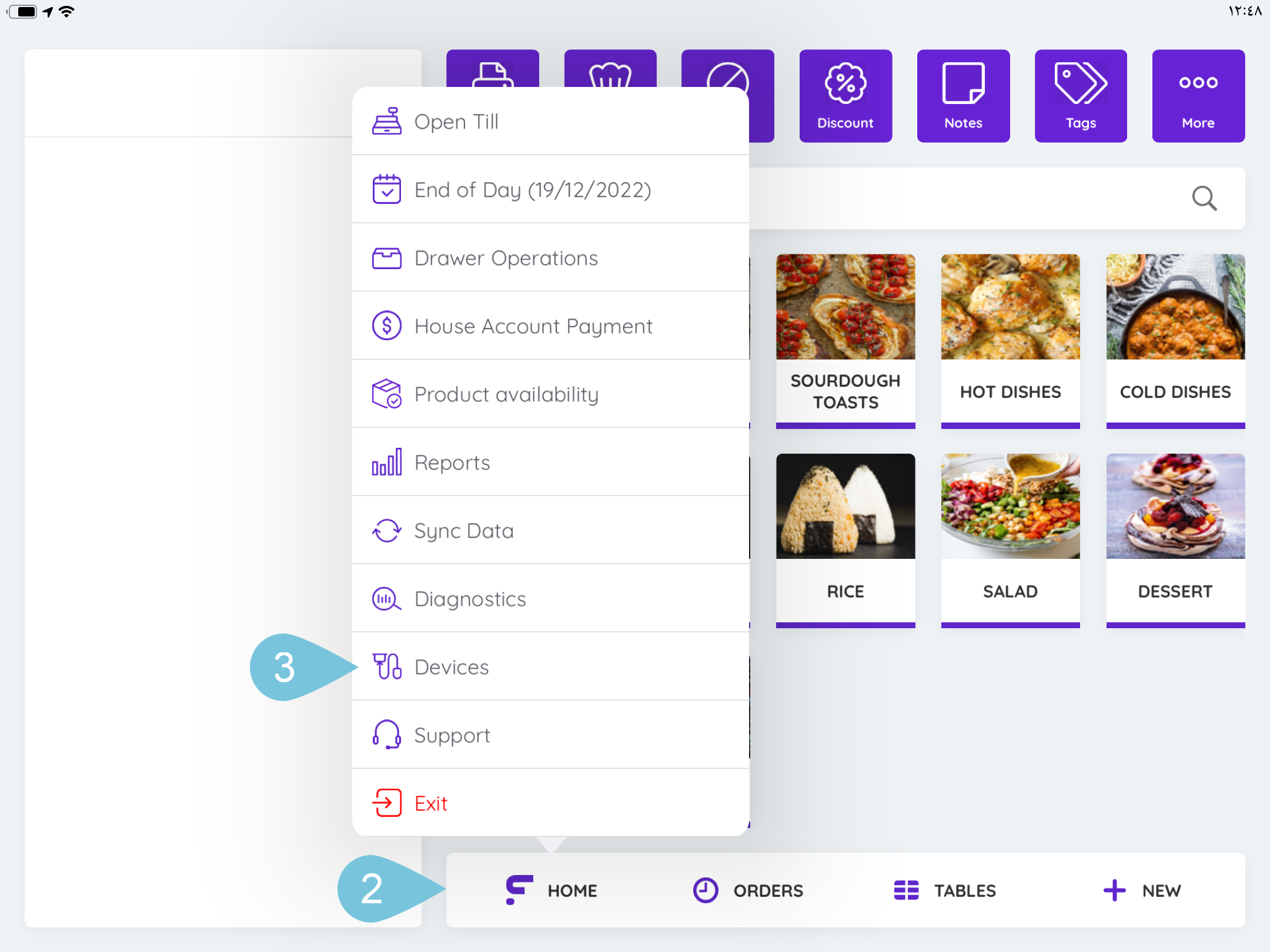

2. Click home and

3. Choose devices.

4. Click on (+) sign.

5. Choose printer.

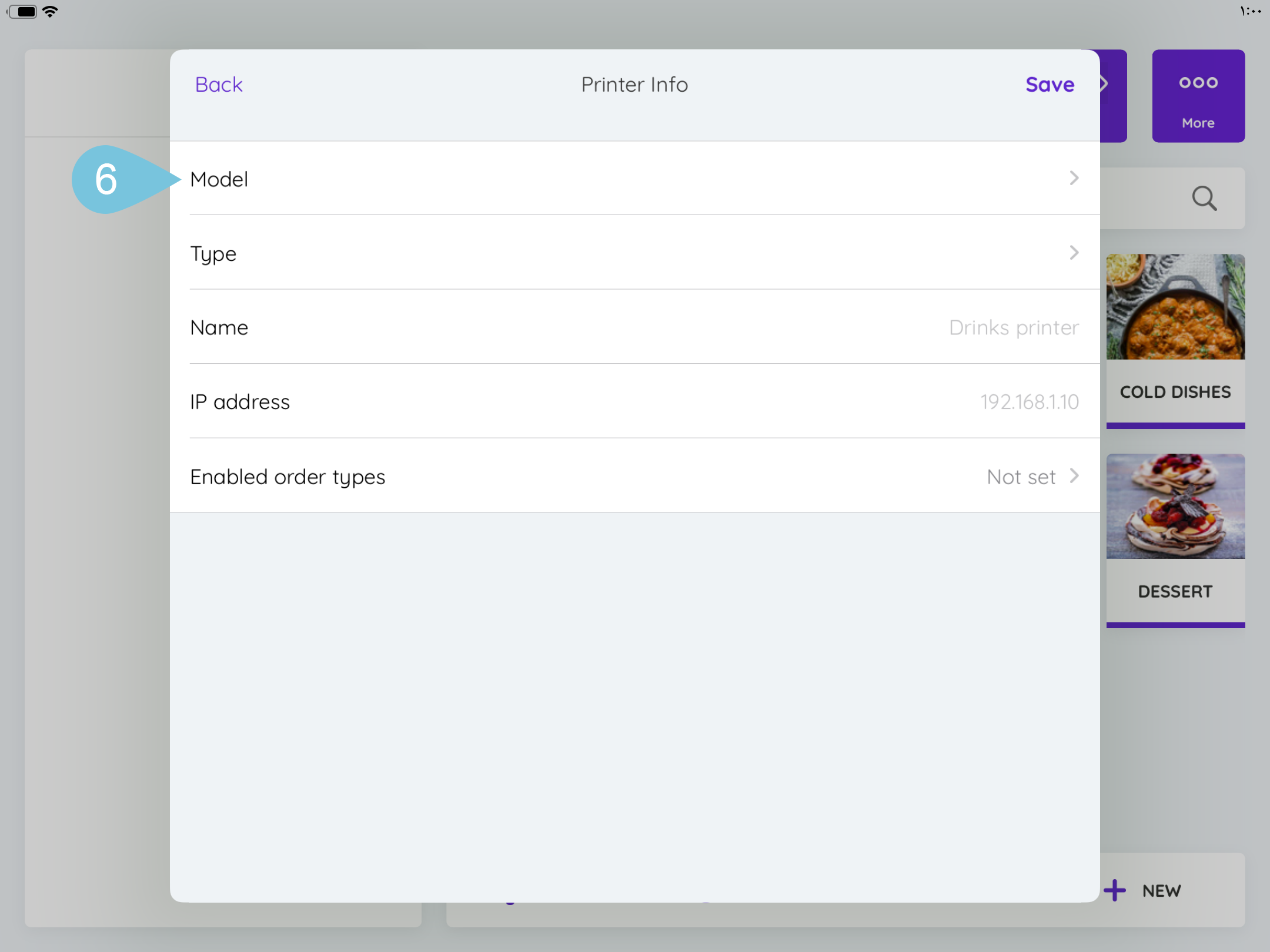

6. Click Model.

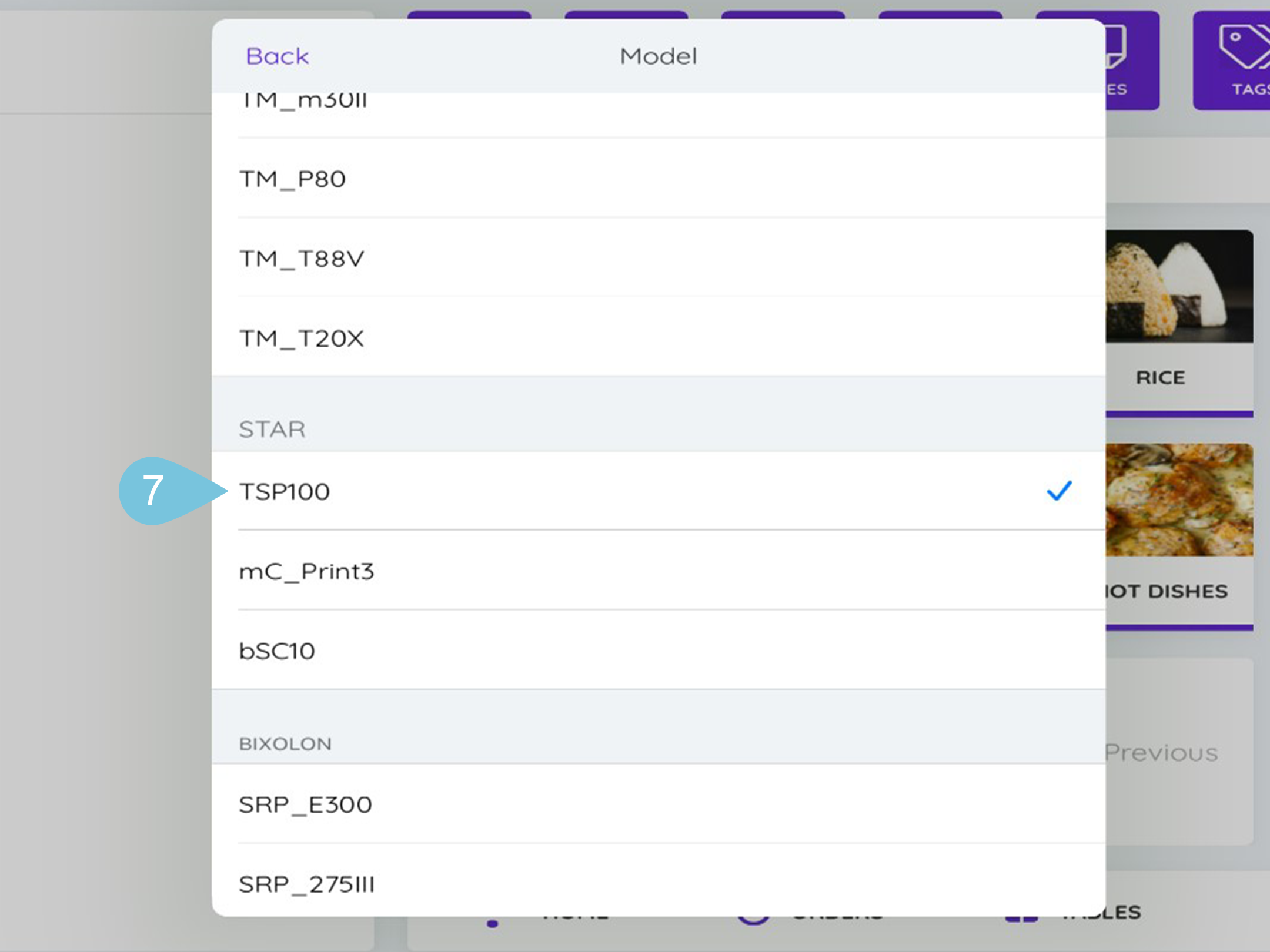

7. Choose the model (STAR TSP100).

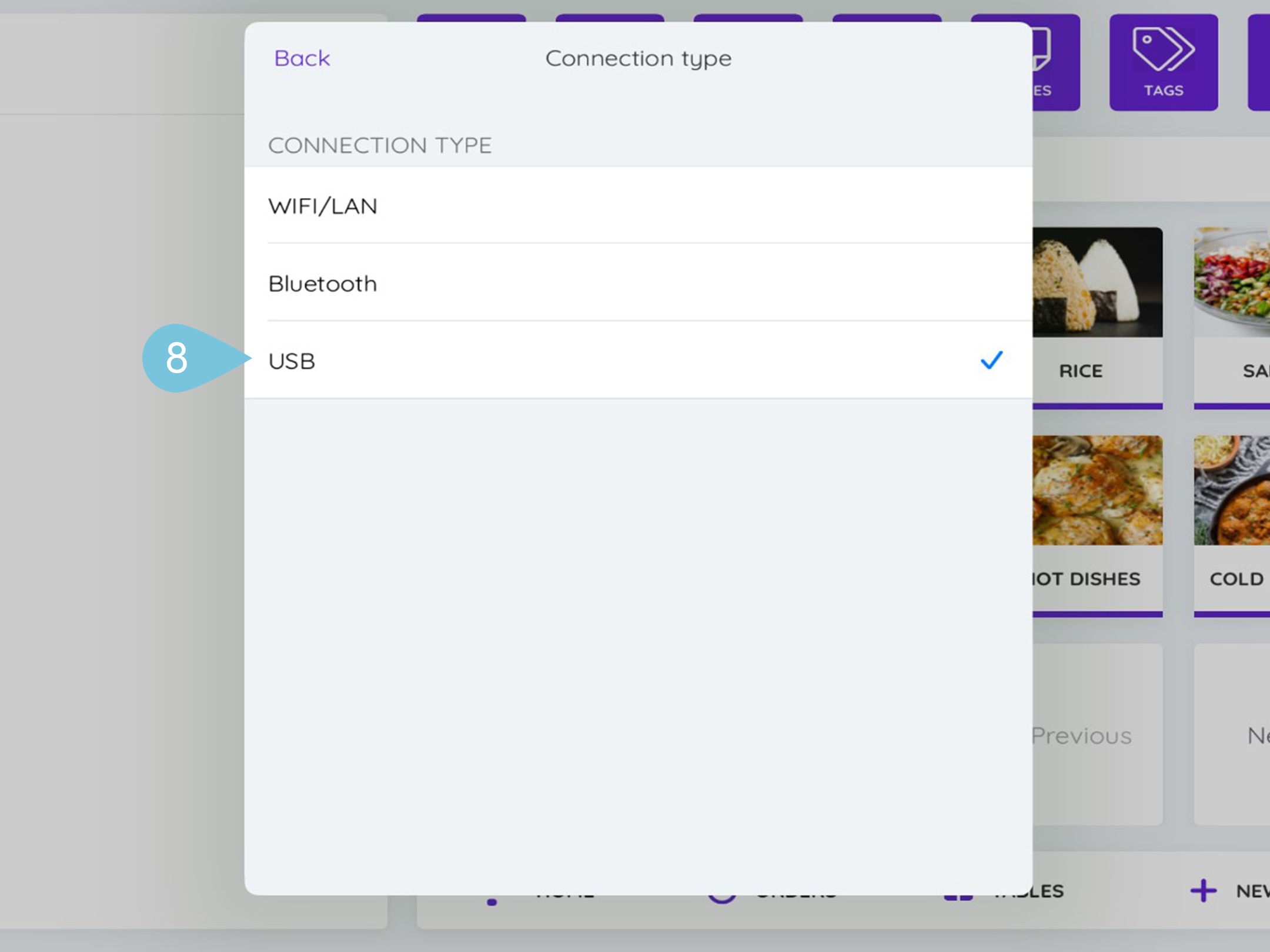

8. Choose the connection type as USB.

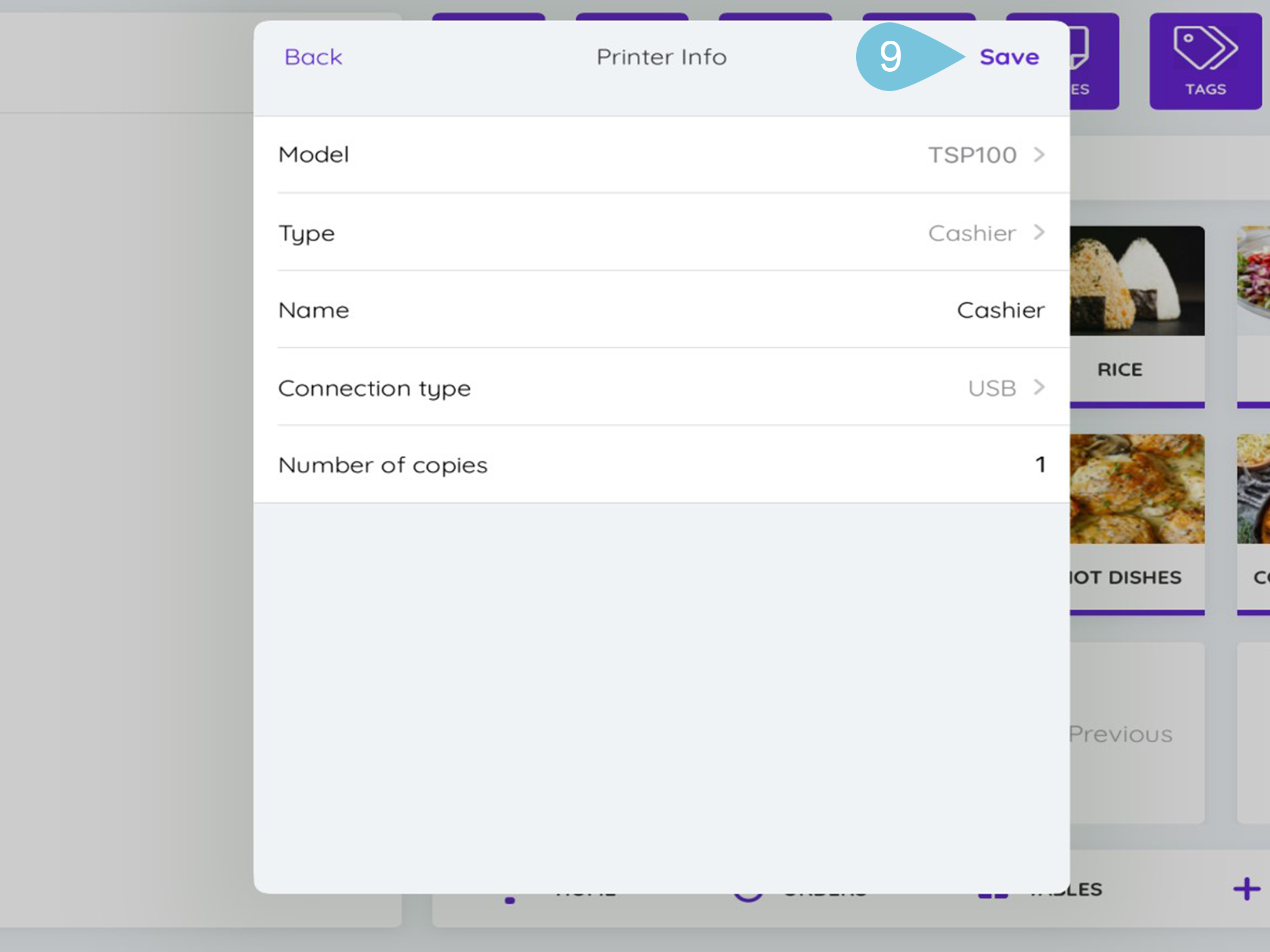

9. Fill remaining printer information and click save.

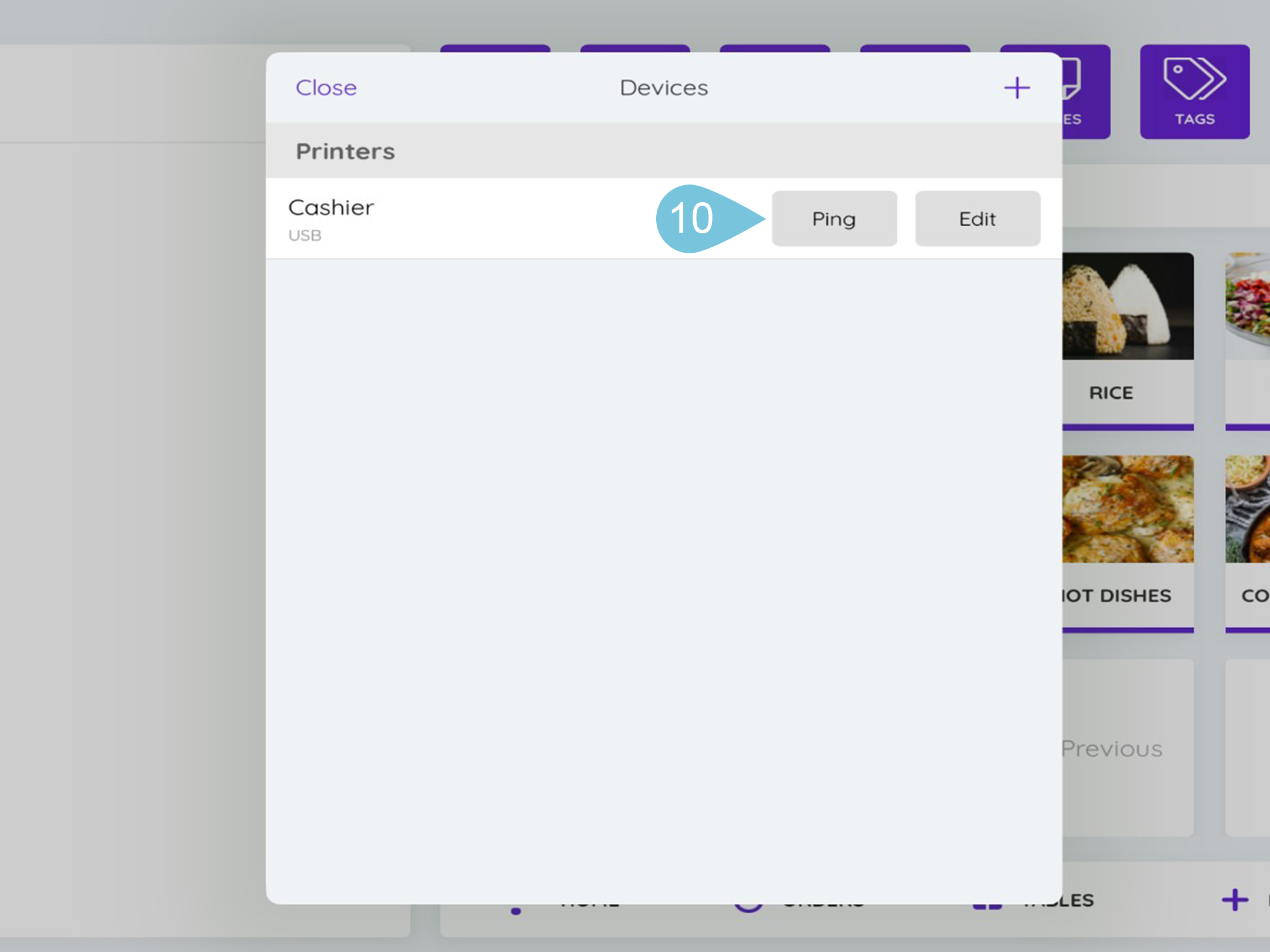

10. Click ping to ensure they are connected successfully.

A Paper will come out of the printer if they get connected.
